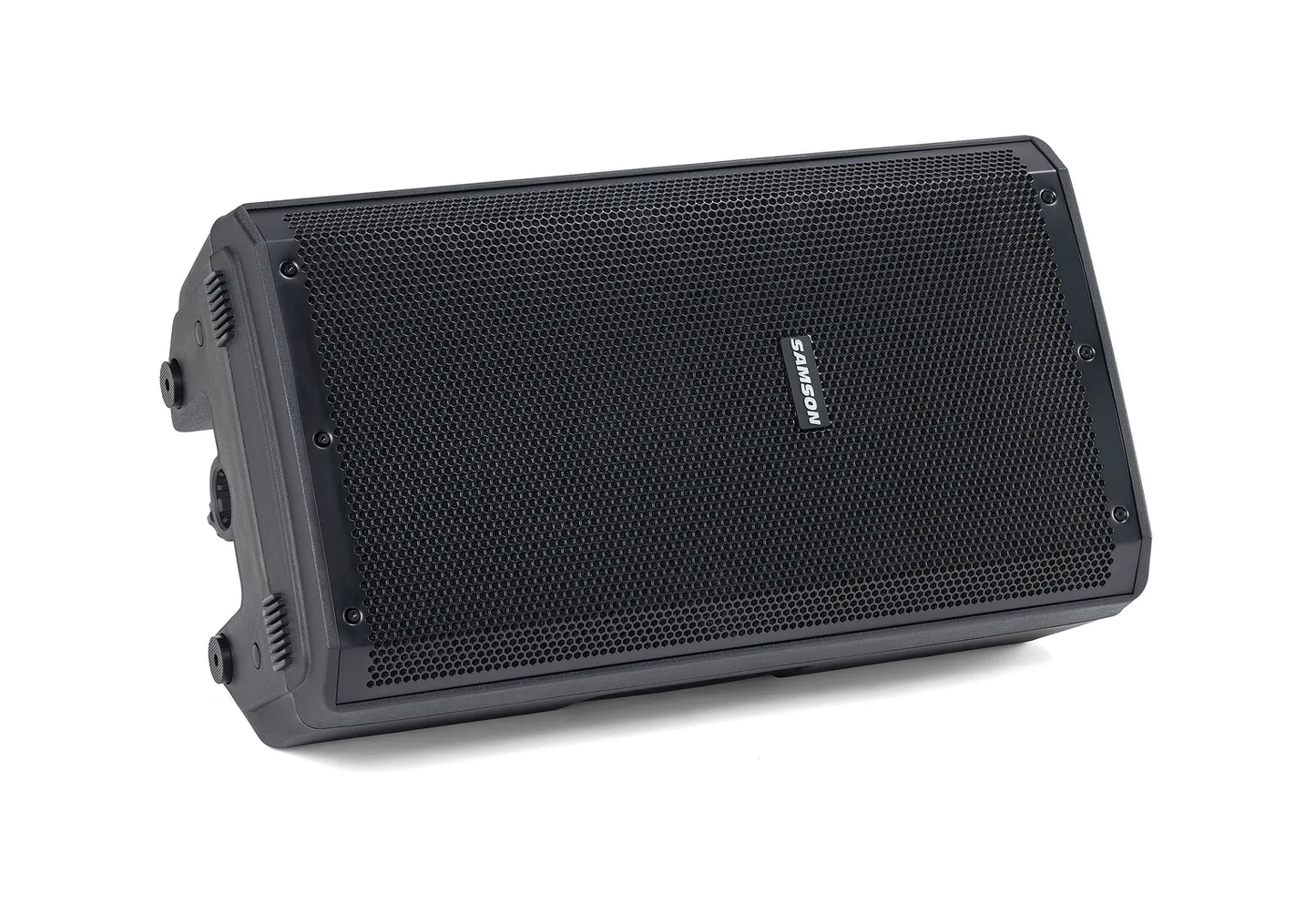

- 2-way active loudspeaker
- 400 watts Peak/200 watts RMS of power
- 12" extended range low frequency driver with 2" voice coil
- 1" high frequency driver
- Two selectable Mic/Line XLR-1/4" combo inputs with variable compressor controls
- Bluetooth connectivity to connect wireless music sources
- 1/8" (3.5mm) Aux input for stereo line level devices (MP3 players, keyboards, etc.)
- XPD Wireless port for use with Samson XPD Series USB Digital Wireless Systems (sold separately)
- Independent volume controls on all channels
- XLR Mix output for daisy chaining additional speakers
- Signal/Limit indicator
- Solid polypropylene enclosure with impact resistant design
- Three large ergonomic carry handles
- Integrated 1 3/8" speaker stand mount
- Four M10 fly points
- Horizontal/Angled floor monitor positioning
- Full perforated metal grille protects all speaker components.
Specifications
| Output Power | 400 Watts Peak /200 Watts RMS |
|---|---|
| Max. SPL (1M) | 115dB |
| Frequency Response | 55Hz – 20KHz |
| Low Frequency | 12” (305mm) Woofer, 2” (50.8mm) Voice Coil |
| High Frequency | 1” (25.4mm), 1” (25.4mm) Voice Coil |
| Crossover Frequency | 3kHz |
| Crossover Type | 18dB/Oct |
| Horn Coverage | 90°H x 60°V |
| Inputs | Balanced XLR–1/4” Combo, USB XPD Wireless |
| Output | Balanced XLR Line Output |
| Contour Equalization | 100Hz & 12kHz Boost |
| Electronic Protection | Thermal, Overload, Analog (Optical) Limiter, Compressor |
| Enclosure | Polypropylene |
| Grille | Full metal perforated |
| Handles | Two side, one top |
| Monitor Angle | 45° |
| Mounting Method | 1-3/8” (35mm) Pole Mount Receptacle, 4 M10 Flypoints |
| Dimensions | 15” x 12.9” x 23.9” / 380mm x 327mm x 606.5mm |
| Weight | 30.8lb / 14kg |
