Classic Tremolo Sounds!

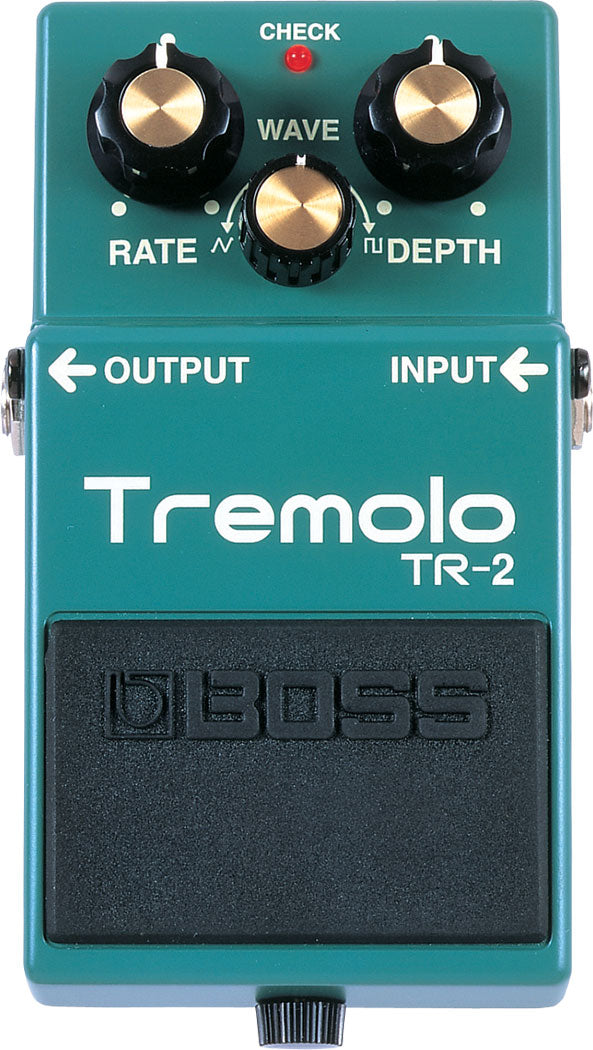

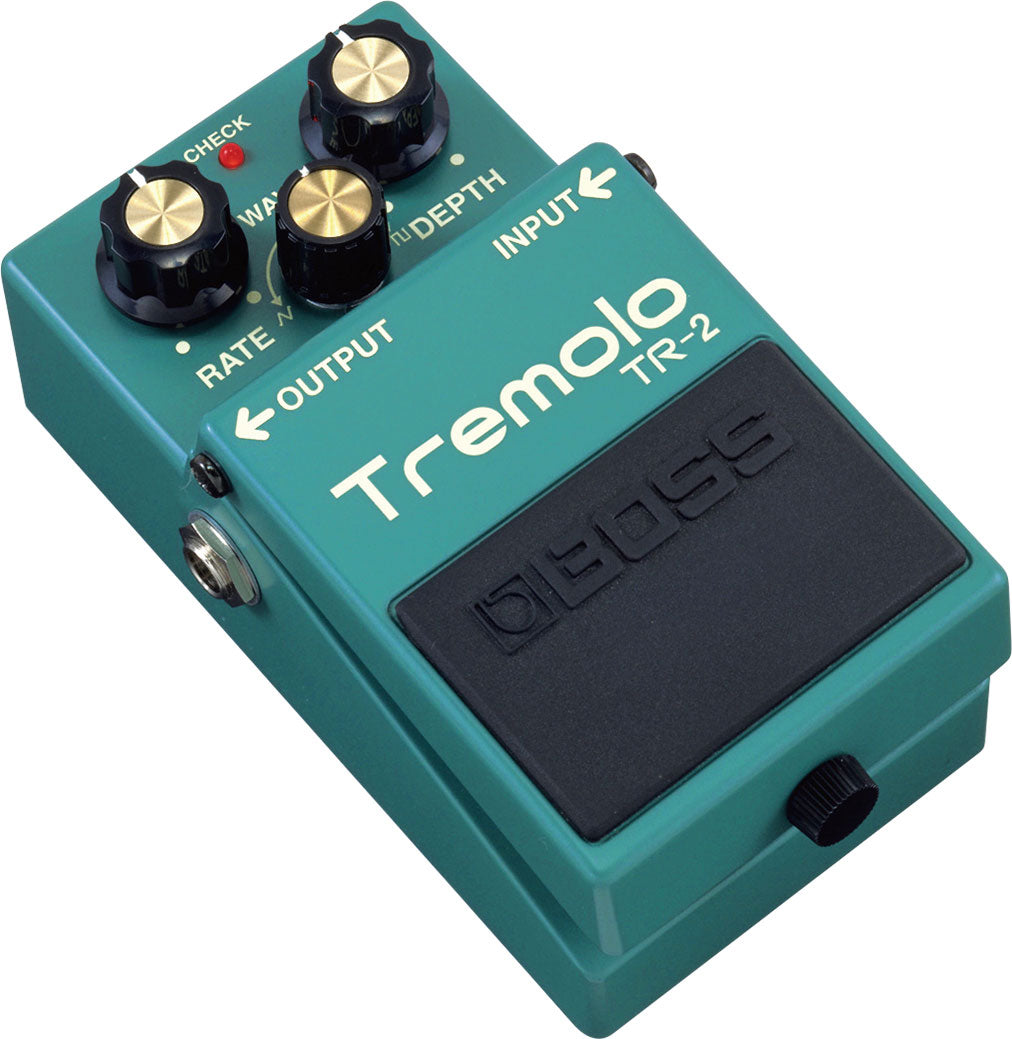

The BOSS TR-2 Tremolo is designed to provide guitarists with classic tremolo effects in an easy-to-use compact pedal. Dedicated "Wave," "Rate," and "Depth" knobs provide a multitude of effect possibilities.

• Provides guitarists with high-quality vintage tremolo effects in an easy-to-use compact pedal
• Dedicated "Wave," "Rate" and "Depth" knobs allow for precise effect tailoring
• "Rate" control allows for higher speed adjustment than classic PN-2
• "Wave" control alters LFO waveform from triangle to square
• "Depth" control determines the strength of the effect
• BOSS five-year warranty

Nominal Input Level

-20 dBu

Input Impedance

1 M ohm

Nominal Output Level

-20 dBu

Output Impedance

1 k ohm

Recommended Load Impedance

10 k ohms or greater

Bypass

Buffered bypass

Controls

DEPTH knob
RATE knob
WAVE knob
Pedal switch

Indicator

CHECK indicator (Used for indication of check battery)

Connectors

INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power Supply

Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw

25 mA

Expected battery life under continuous use

Carbon: Approx. 12 hours
Alkaline: Approx. 28 hours
*These figures will vary depending on the actual conditions of use.

Accessories

Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)

Options (sold separately)

AC adaptor: PSA series
