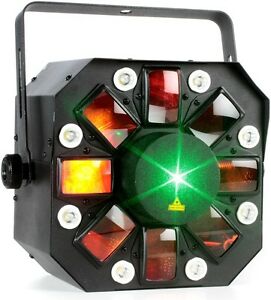

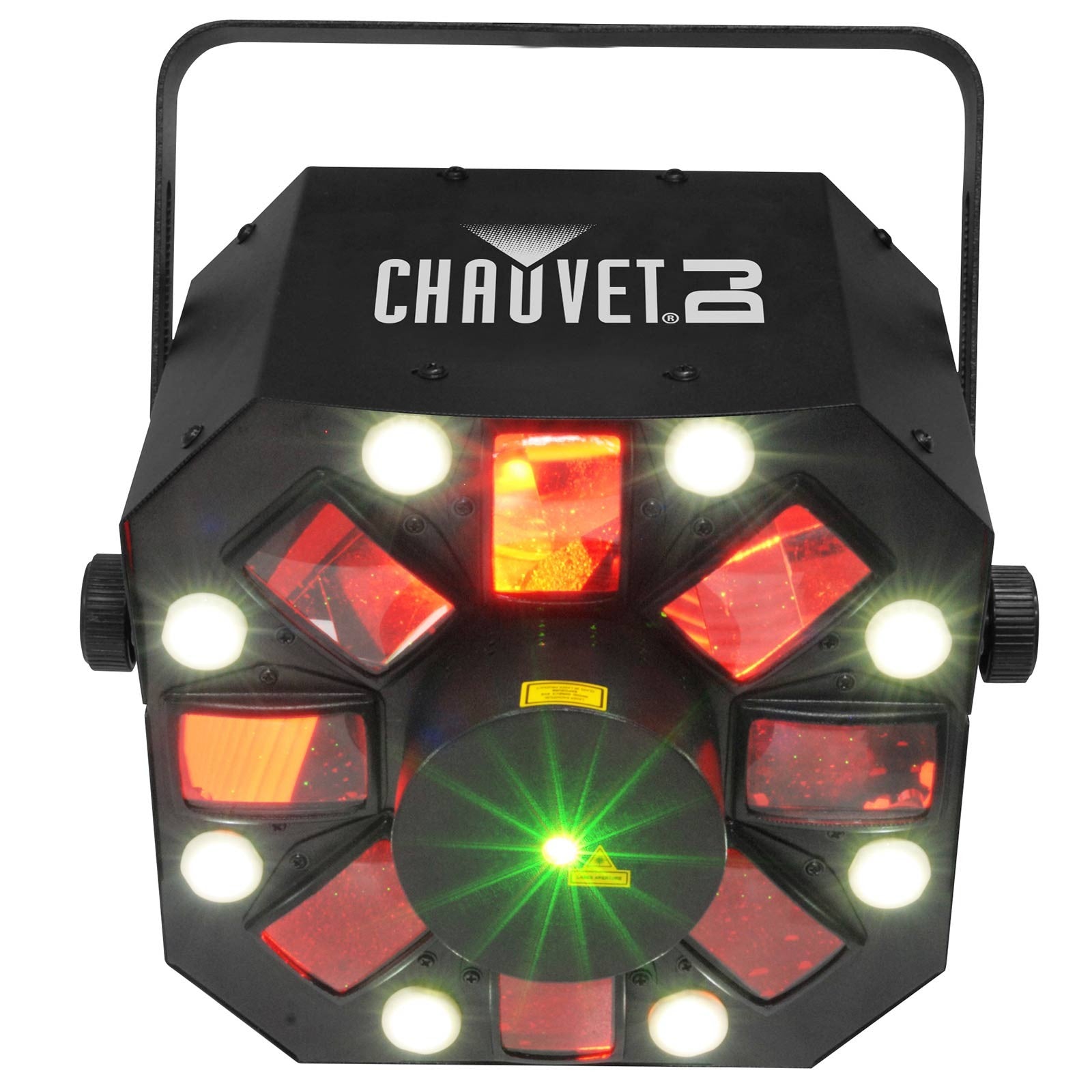

Chauvet DJ Swarm 5 FX ILS Multi-Effect Light

The Chauvet Swarm 5 FX ILS multi-effect light provides a dazzling array of visual effects to illuminate any stage or venue. This compact yet powerful fixture combines red and green lasers, an RGBAW rotating derby, and ultrabright LED strobes into a single versatile unit. With nine channels of DMX control and D-Fi USB connectivity for wireless operation, the Swarm 5 FX ILS offers easy synchronization and advanced programming options for professional lighting designers and DJs alike.

Cutting-Edge Lasers And Strobes For A Modern Club Vibe

At the heart of the Swarm 5 FX ILS are a pair of lasers emitting thousands of red and green beams in mesmerizing patterns. Flanking the lasers are eight high-intensity LED strobes that pulse to the beat, flooding the room with bursts of bright white light. The combined effect is a futuristic look ideal for modern clubs, raves and product launches.

Endless Patterns And Effects With An RGBAW Rotating Derby

In addition to the lasers and strobes, the Swarm 5 FX ILS features an RGBAW rotating derby with five multi-colored LEDs that spin countless dots and shapes across the floor and ceiling. Between the rotating derby, lasers and strobes, this compact fixture can generate a dizzying array of dynamic lighting effects to suit any musical style or event.

Simple Set-Up And Operation For Beginners And Pros Alike

Despite its impressive capabilities, the Swarm 5 FX ILS is designed for easy operation. It offers automated and sound-activated programs that require no programming experience to get started. For more advanced control, the Swarm 5 FX ILS has nine DMX channels and D-Fi USB connectivity to synchronize with professional lighting controllers and software. All components are housed in a rugged metal casing and the fixture includes a carrying case for protection during transport and storage between events.

Endless Possibilities For Creative Lighting Design

With lasers, strobes and an RGBAW rotating derby combined in a single compact fixture, the Swarm 5 FX ILS provides limitless options for creative lighting. Use it as a standalone centerpiece or combine multiple units for large-scale effects. Sync the Swarm 5 FX ILS with intelligent lighting, fog machines and professional lighting software to design a customized visual experience for any venue.

• DMX Channels: 9
• DMX Connectors: 3-pin XLR
• Light Source (Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 3W, (300 mA), 50,000 hours life expectancy
• Light Source (strobe): 8 LEDs (white) 1W, (300 mA), 50,000 hours life expectancy
• Light Source (laser): 520 nm/30 mW (green) laser diode, 650 nm/100 mW (red) laser diode
• Strobe Rate: 0 to 20Hz
• Beam Angle (strobe): 17°
• Field Angle (strobe): 35°
• Coverage Angle (laser): 100°
• Coverage Angle (Swarm): 65°
• Illuminance (strobe): 823 lux @ 2 m
• Power Linking: 15 units @ 120V; 26 units @ 230V
• Input Voltage: 100 to 240 VAC, 50/60Hz (auto-ranging)
• Power and Current: 62W, 0.5 A @ 120V, 60Hz
• Power and Current: 62W, 0.3 A @ 230V, 50Hz
