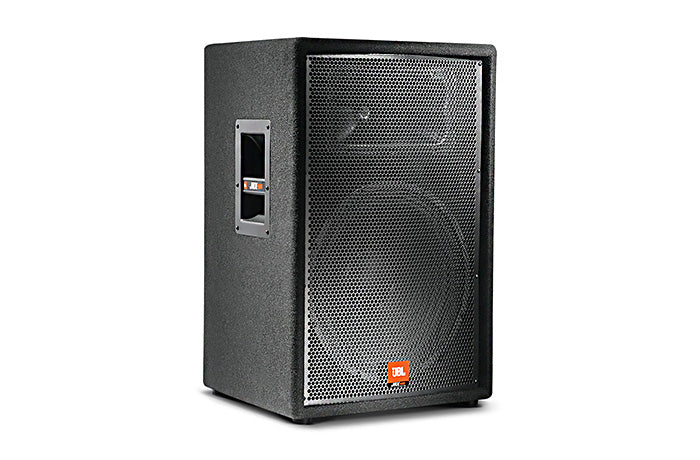

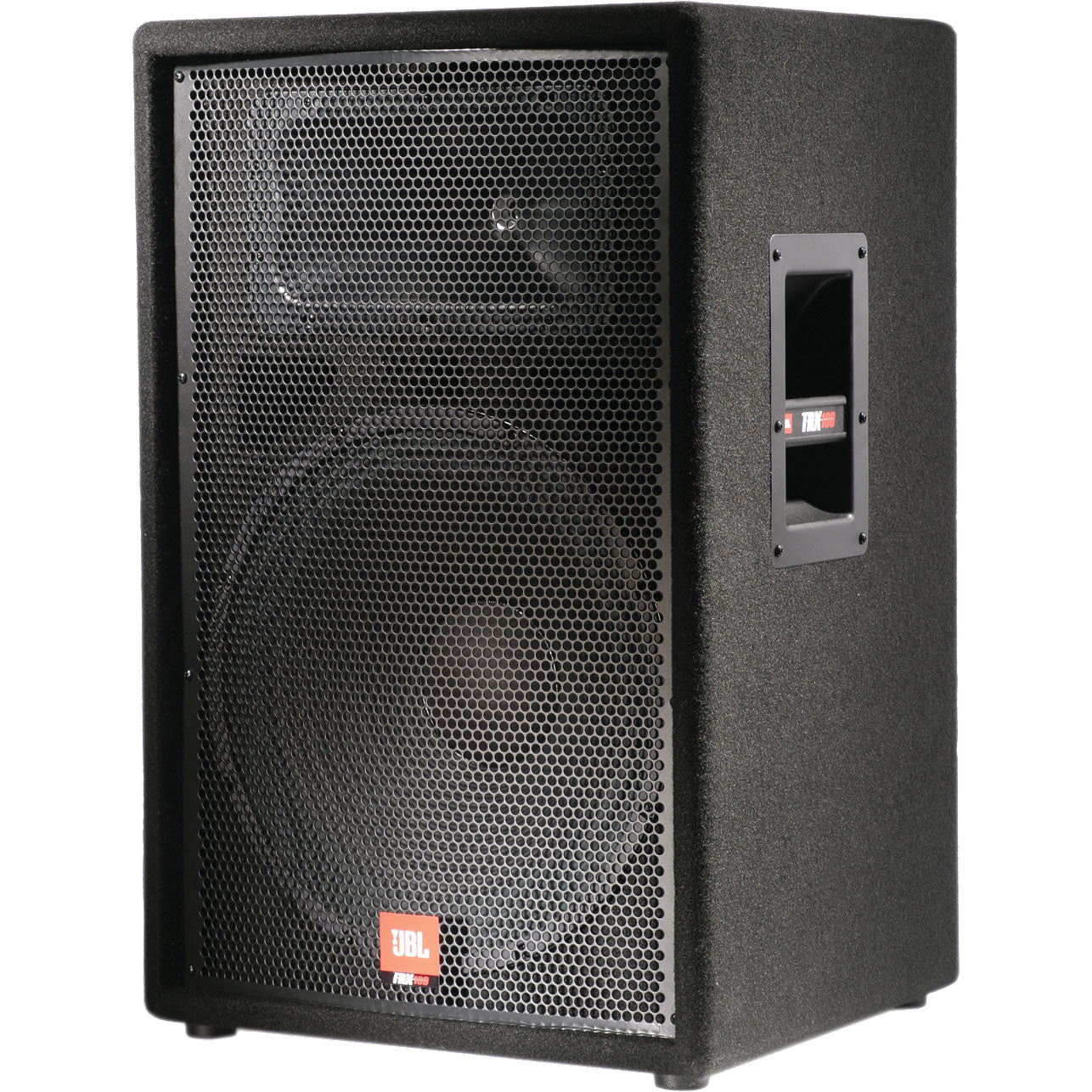

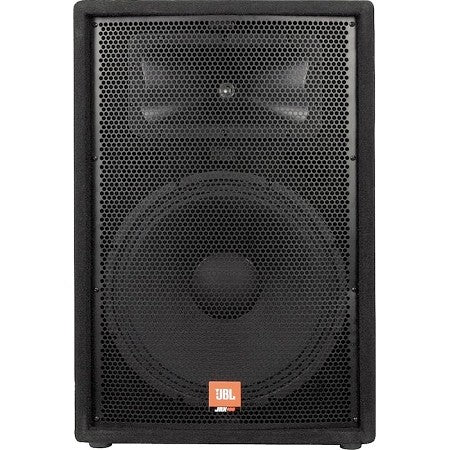

Pre-Owned JBL Passive 15" Two-Way Loud Speaker JRX115

These were used in a professional studio and are in great condition. They have not been used outside of the studio. Shipping is additional. Please contact us for more information.

• JBL 15 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
• Ferro-fluid cooled compression driver with titanium diaphragm improves high frequency performance as well as system reliability.
• The advanced network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region.
• High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
• Progressive Transition™ highfrequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
• The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in ) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
• SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
• Non-resonant, all-steel handles are used.
• Attractive 18-gauge perforated, steel grille protects components from damage.
• Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage.

Tech Specs:

Power Rating

250 W / 1000W

Frequency Range

38 Hz - 16 kHz (-10 dB)

Dimensions(H x W x D)

699 mm x 460 mm x 432 mm(27.5 in x 18.1 in x 17 in)

Frequency Response

50 Hz - 12.5 kHz (±3 dB)

Sensitivity

98 dB SPL (1w/1m)

Nominal Impedance

8 ohms

Recommended Amplifier Power

250 W to 500 W into 8 ohms

Maximum SPL

128 dB

Nominal Dispersion

90° x 50°

Crossover Frequency

1.6 kHz

Weight

27.4 kg (61 lb)

High Frequency Driver

JBL 2412 1 in exit compression driver mounted on ProgressiveTransition™ Waveguide

Low Frequency Driver

JBL M115-8A

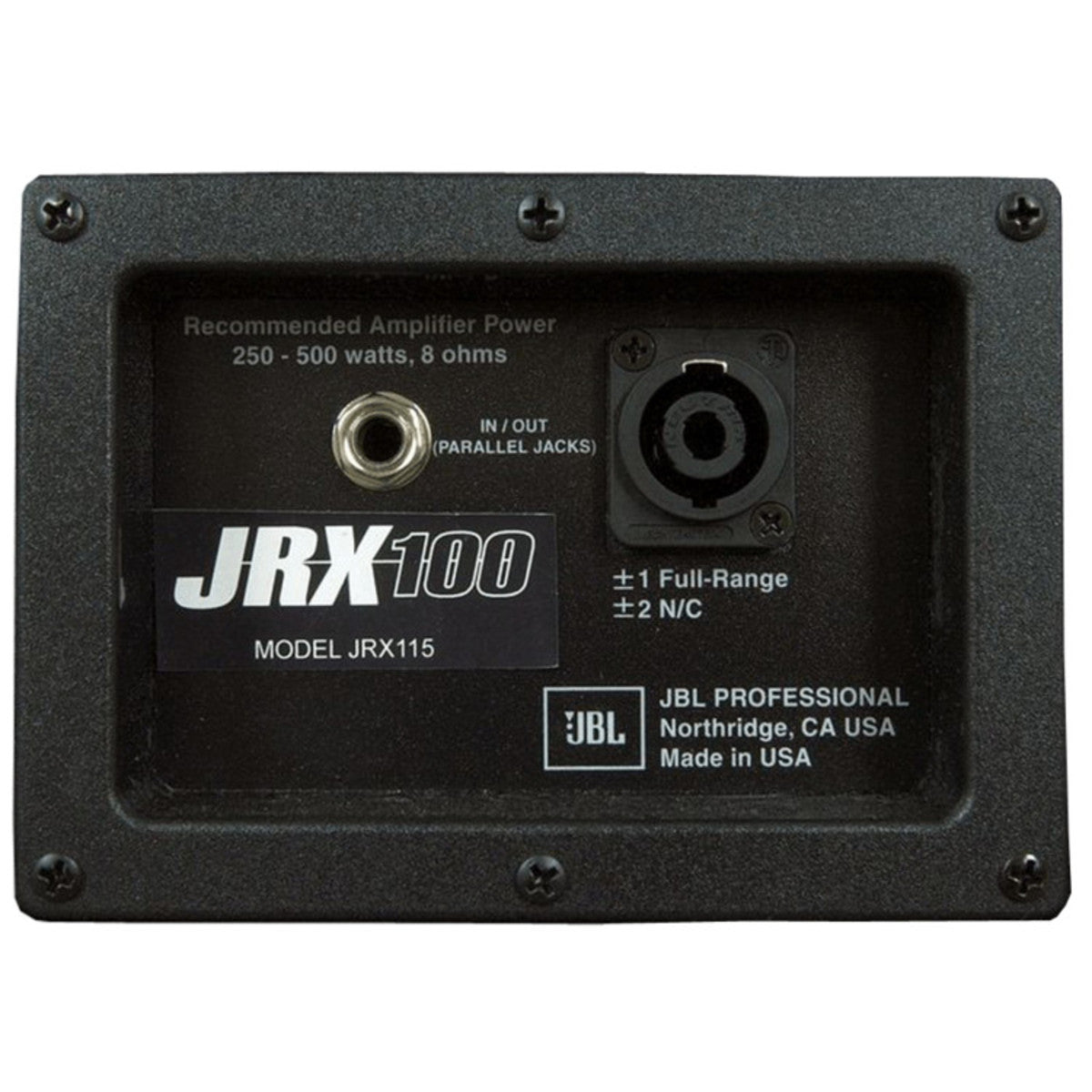

Input Connectors

Neutrik® Speakon® NL-4 (x1); .25in TS phone jack (x1); parallel
