SAMSON Concert 288 Handheld Dual-Channel UHF Wireless System (Band I)

Name: SAMSON Concert 288 Handheld Dual-Channel UHF Wireless System (Band I)
Brand: SAMSON
SKU: SWC288HQ6-I
Price: 369.99 USD
Availability: OutOfStock

SKU:SWC288HQ6-I

$369.99

~~$369.99~~ $369.99

Sale Unavailable: Contact us for Details

Product variants

Quantity

Concert 288 Handheld

Dual-Channel UHF Wireless System (Band I)

Take the worry out of wireless with the Concert 288 handheld wireless system. Offering easy setup, flawless operation and premium sound, it's the ideal high-performance UHF wireless solution for vocal performances, presentations, educational applications and more where two users are needed.

Great for: Education

Take The Worry Out Of Wireless

The two-channel, frequency-agile Concert 288 Handheld allows up to 12 systems (24 performers) to operate simultaneously (depending on region). The Concert 288 Handheld gives both performers an impressive 300' of wireless range between the transmitters and receiver, making the system ideal for large stages and crowd participation. To ensure interference-free performance, the Concert 288 Handheld features a true diversity design. In the event of a loss, the receiver automatically mutes to eliminate background noise until the signal is restored.

Perform in Pairs

The Concert 288 Handheld includes two CH288 handheld transmitters with Q6 dynamic microphone capsules. Powered by two AA batteries for up to eight hours each, the transmitters are meticulously engineered to provide the ultimate in sound reproduction. With the Concert 288 handheld wireless system, advanced technology and total versatility combine to deliver high-quality wireless performance wherever singers, presenters, educators and others need it.

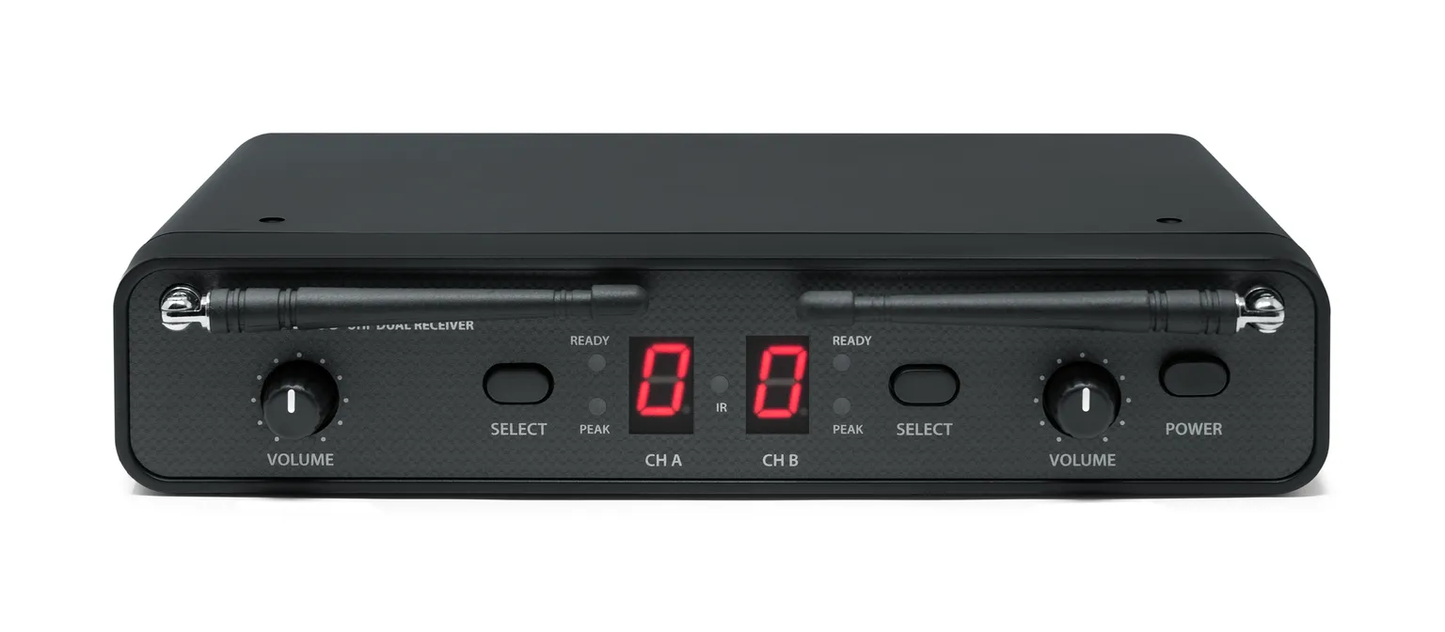

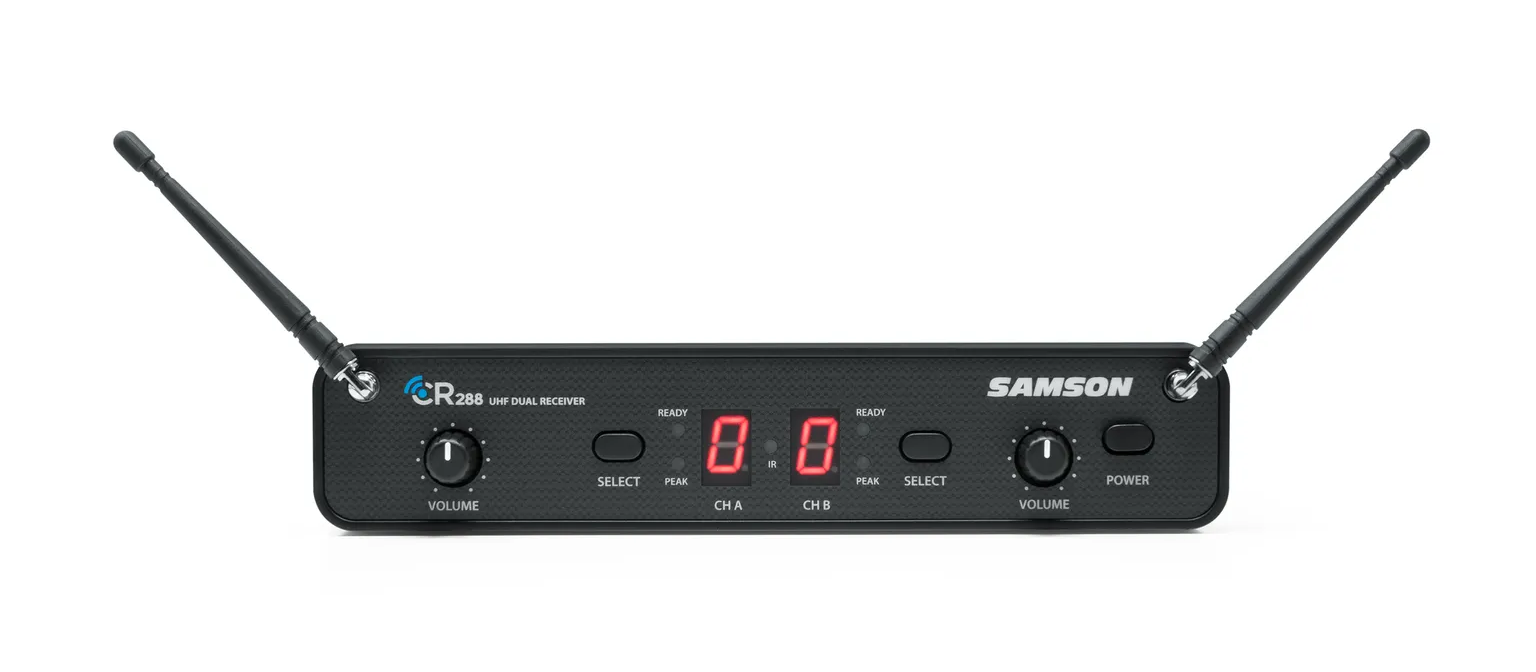

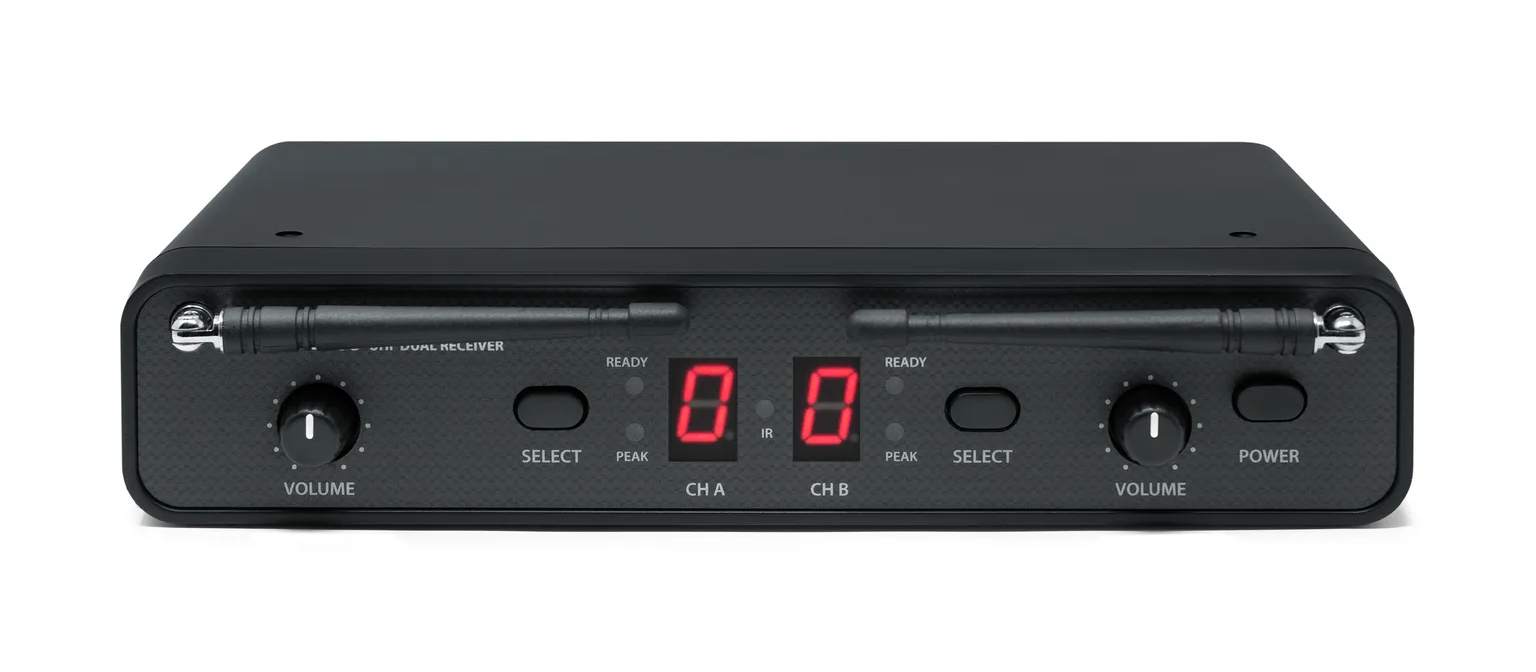

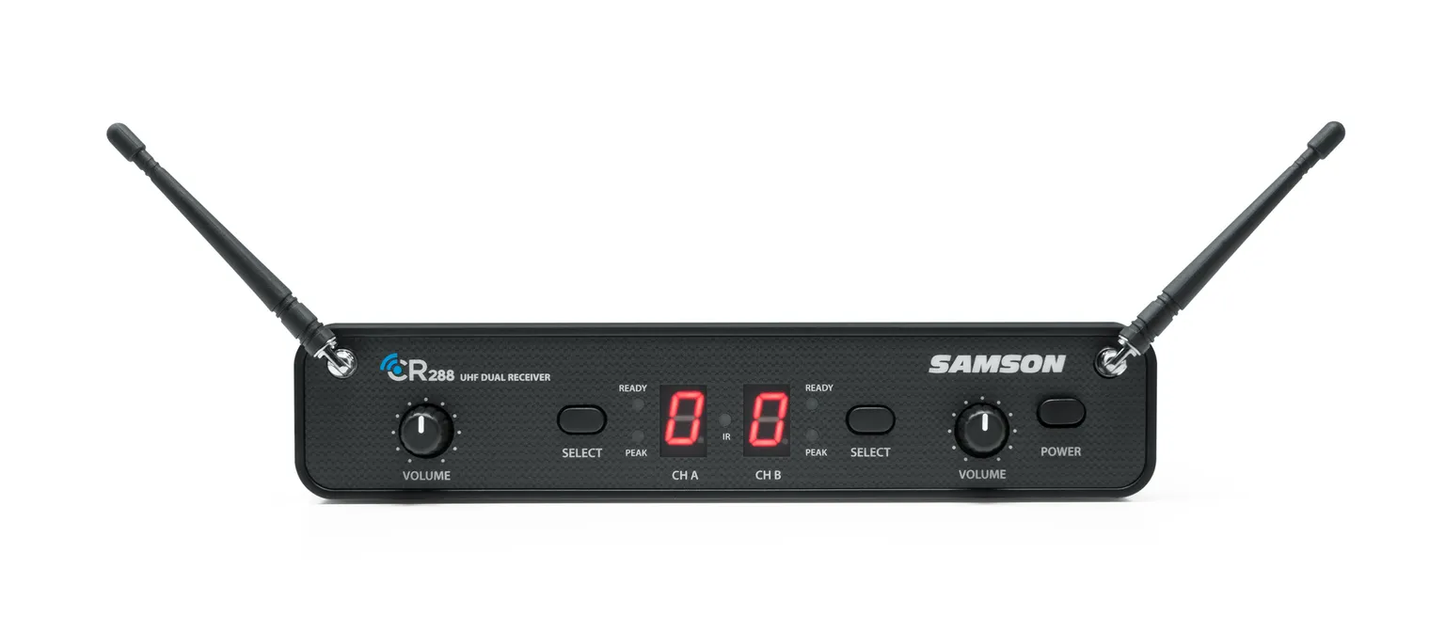

Dual-Channel Receiver

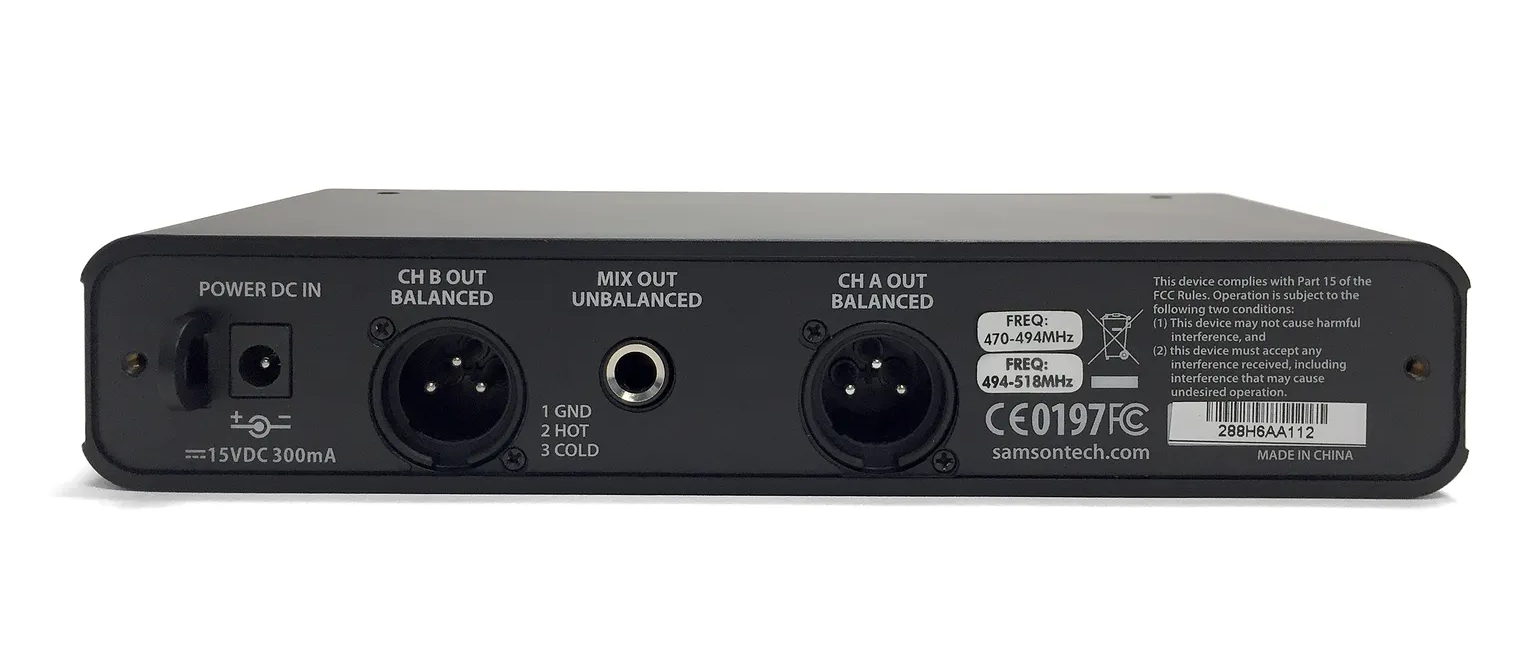

With a user-friendly front panel, the CR288 wireless receiver makes system setup quick and easy. To help you find your optimal channel, the CR288 has two select buttons that automatically synchronize the receiver and transmitter channels via an infrared signal. The front panel also features a dual 7-segment LED to indicate operating channels, two volume controls, two tuned antennas, and Ready and Peak indicators for optimal functionality and monitoring. The rear of the receiver features two separate balanced XLR outputs for routing signals to two separate mixer channels, as well as a 1/4" unbalanced mix output that combines both signals into a single channel for direct connection to a PA speaker.

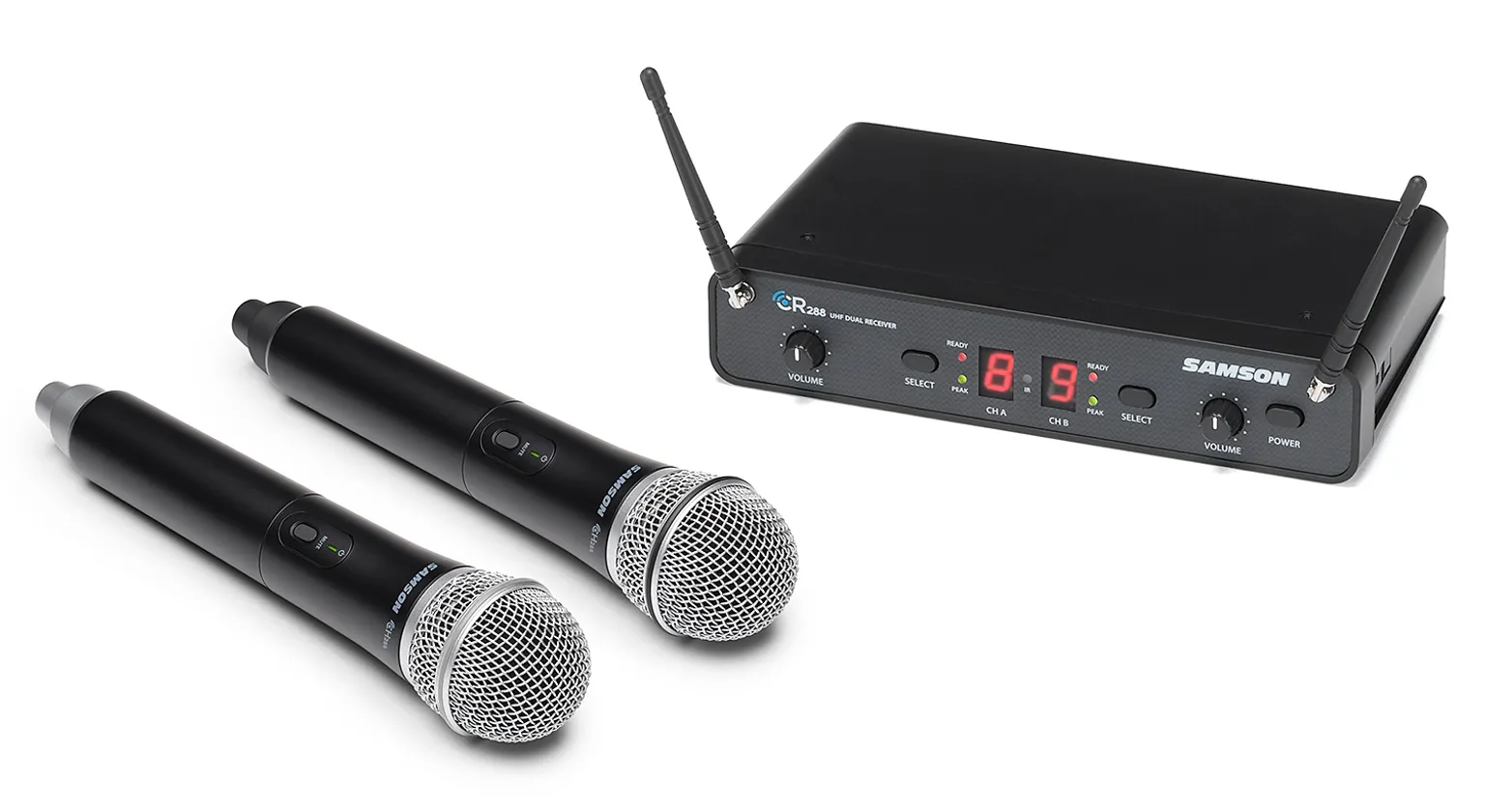

Concert 288 Handheld System

Dual-channel, high-performance UHF wireless system
1/4” audio cable, AC adapter and rackmount kit included

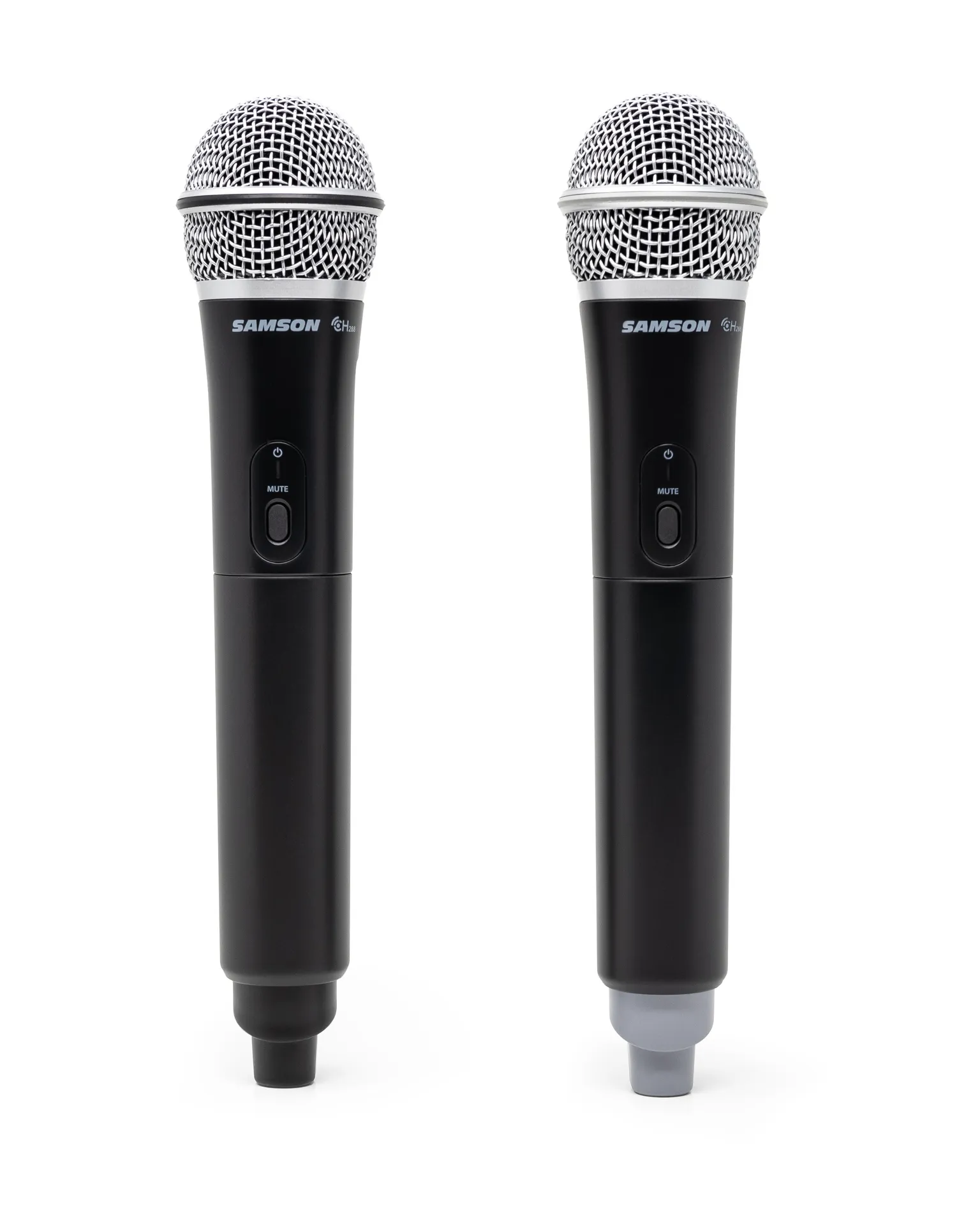

Two CH288 Handheld Transmitters

Two Q6 Dynamic Microphone capsules
Each offers up to eight hours of battery life using two AA batteries
300' operating range

CR288 Wireless Receiver

Multiple frequency options for interference-free performance in any environment
Up to 12 systems can be operated simultaneously (region dependent)
Separate Volume controls for each wireless signal
Dual balanced XLR outputs for routing signals to two separate mixer channels
1/4” unbalanced mix output to combine signals to one output channel

Specifications

**System**
Working Range	300' (100m) line of sight
Audio Frequency Response	50 Hz - 15 kHz
T.H.D. (Overall)	<1% (@AF 1 kHz, RF 46 dBu)
Dynamic Range	>100 dB A-weighted
Signal to Noise	>85 dB
Tone Key Frequency	32.768 kHz

**CH288 Handheld Transmitter**
Microphone Element	Q6 Dynamic
Input Gain Range	28 dB
RF Power	10 mW EIRP
Power Requirements	Two AA (LR6) alkaline batteries
Battery Life	8 hours
Dimensions (HxØ)	10.23" x ø2.1" / 260mm x ø54mm
Weight	0.48lb / 218g

**CR288 Receiver**
Audio Output Level - Mix Unbalanced	+14 dBu
Audio Output Level - Balanced	+14 dBu
Audio Output Impedance - Unbalanced	1k Ohms
Audio Output Impedance - Balanced	470 Ohms
Sensitivity	-100 dBm / 20 dB sinad
Image Rejection	>50 dB
Operating Voltage	15 VDC 300mA
Dimensions (LxWxH)	8.25" x 4.9" x 1.75" / 210mm x 125mm x 44mm
Weight	0.99lb / 450g
