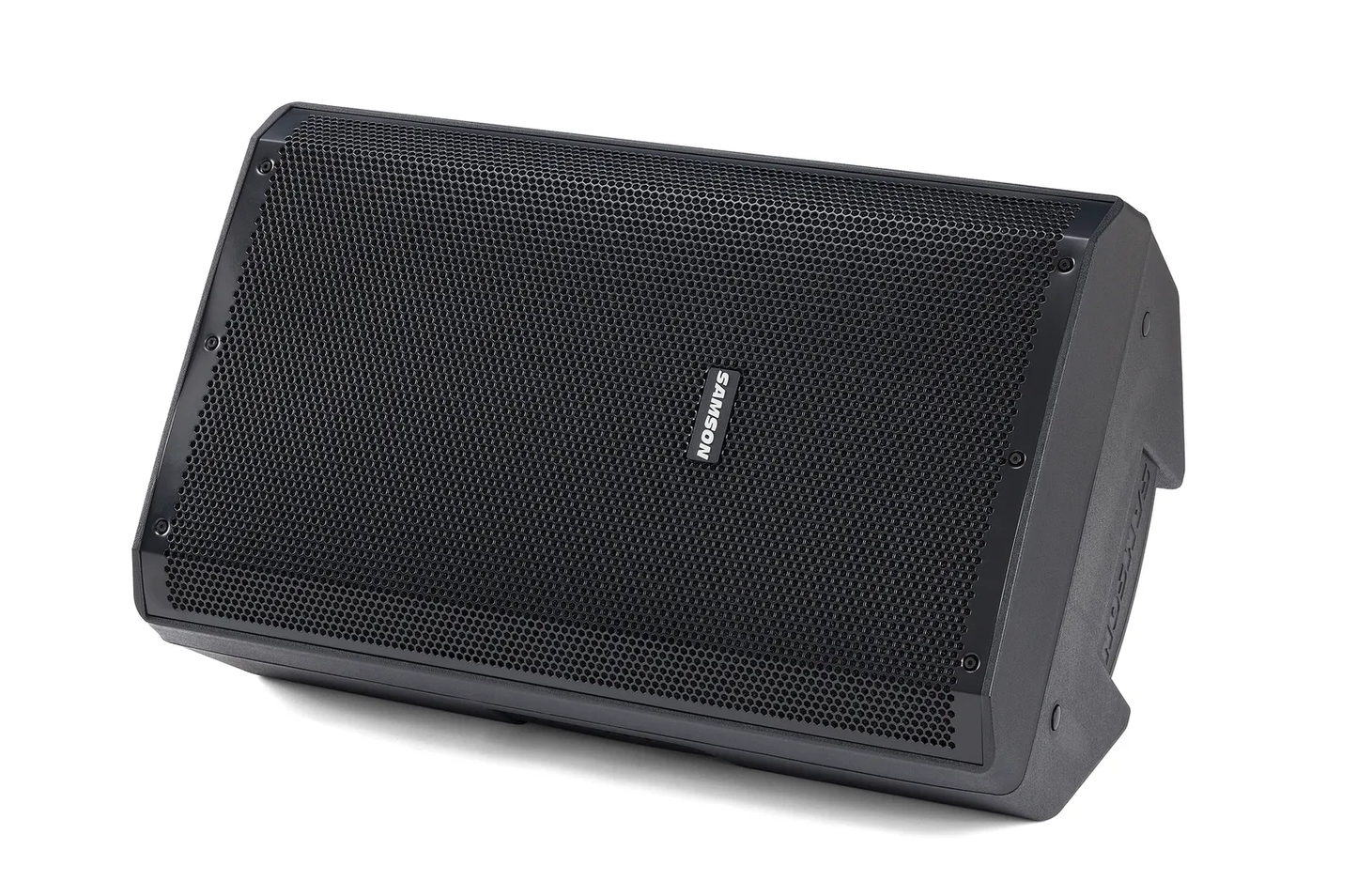

The RS115A 400W 2-way active loudspeaker brings powerful, versatile and convenient sound reinforcement to a wide range of audio applications. Easy to transport and set up, this powerful speaker features an onboard mixer with mic/line input options, Bluetooth® audio streaming, and a USB wireless port for connecting Samson XPD Series wireless microphone systems.
Great for: Fitness, Theater / Production, Restaurant / Retail
Power and Drive(rs)
Featuring a bi-amplified design (separate high and low frequency amplifiers), the RS115A offers greater efficiency, more accurate sound and an impressive 400 watts of power. This power is delivered by a 15" extended-range woofer with a large 2.5" voice coil that provides excellent coverage and clarity, while keeping the low end tight and punchy. Meanwhile, its 1-inch tweeter adds smooth, crisp highs to create a balanced sonic image.
Mix Matters
The RS115A speaker features an on-board mixer with two selectable mic/line XLR-1/4" combo input channels with variable compressor controls. An additional channel provides a 1/8" line level input, Bluetooth connectivity, and a USB wireless port for use with Samson XPD wireless microphone systems (sold separately). The RS115A also features an XLR mix output for daisy-chaining additional speakers to expand your sound system.
Protection and Placement
In addition to its high-impact polypropylene cabinet construction, the RS115A features a full-metal grill for maximum component protection. Each cabinet offers horizontal/angled floor monitor positioning, a 1 3/8" pole mount for stand placement, and four M10 fly points for permanent speaker installation. In addition, the RS115A includes convenient top and side carrying handles for easy transport.
Features / Specs
2-way active loudspeaker
400 watts Peak/200 watts RMS of power
15" extended range low frequency driver with 2.5" voice coil
1" high frequency driver
Two selectable Mic/Line XLR-1/4" combo inputs with variable compressor controls
Bluetoothconnectivity to connect wireless music sources
1/8" (3.5mm) Aux input for stereo line level devices (MP3 players, keyboards, etc.)
XPD Wireless port for use with Samson XPD Series USB Digital Wireless Systems (sold separately)
Independent volume controls on all channels
XLR Mix output for daisy chaining additional speakers
Signal/Limit indicator
Solid polypropylene enclosure with impact resistant design
Three large ergonomic carry handles
Integrated 1 3/8" speaker stand mount
Four M10 fly points
Horizontal/Angled floor monitor positioning
Full perforated metal grille protects all speaker components
Specifications
Output Power
400 Watts Peak /200 Watts RMS
Max. SPL (1M)
116dB
Frequency Response
50Hz – 20kHz
Low Frequency
15” (381mm) Woofer, 2.5” (63.5mm) Voice Coil
High Frequency
1” (25.4mm), 1” (25.4mm) Voice Coil
Crossover Frequency
3kHz
Crossover Type
18dB/Oct
Horn Coverage
90°H x 60°V
Inputs
Balanced XLR–1/4” Combo, USB XPD Wireless
Output
Balanced XLR Line Output
Contour Equalization
100Hz & 12kHz Boost
Electronic Protection
Thermal, Overload, Analog (Optical) Limiter, Compressor
Enclosure
Polypropylene
Grille
Full metal perforated
Handles
Two side, one top
Monitor Angle
45°
Mounting Method
1-3/8” (35mm) Pole Mount Receptacle, 4 M10 Flypoints
