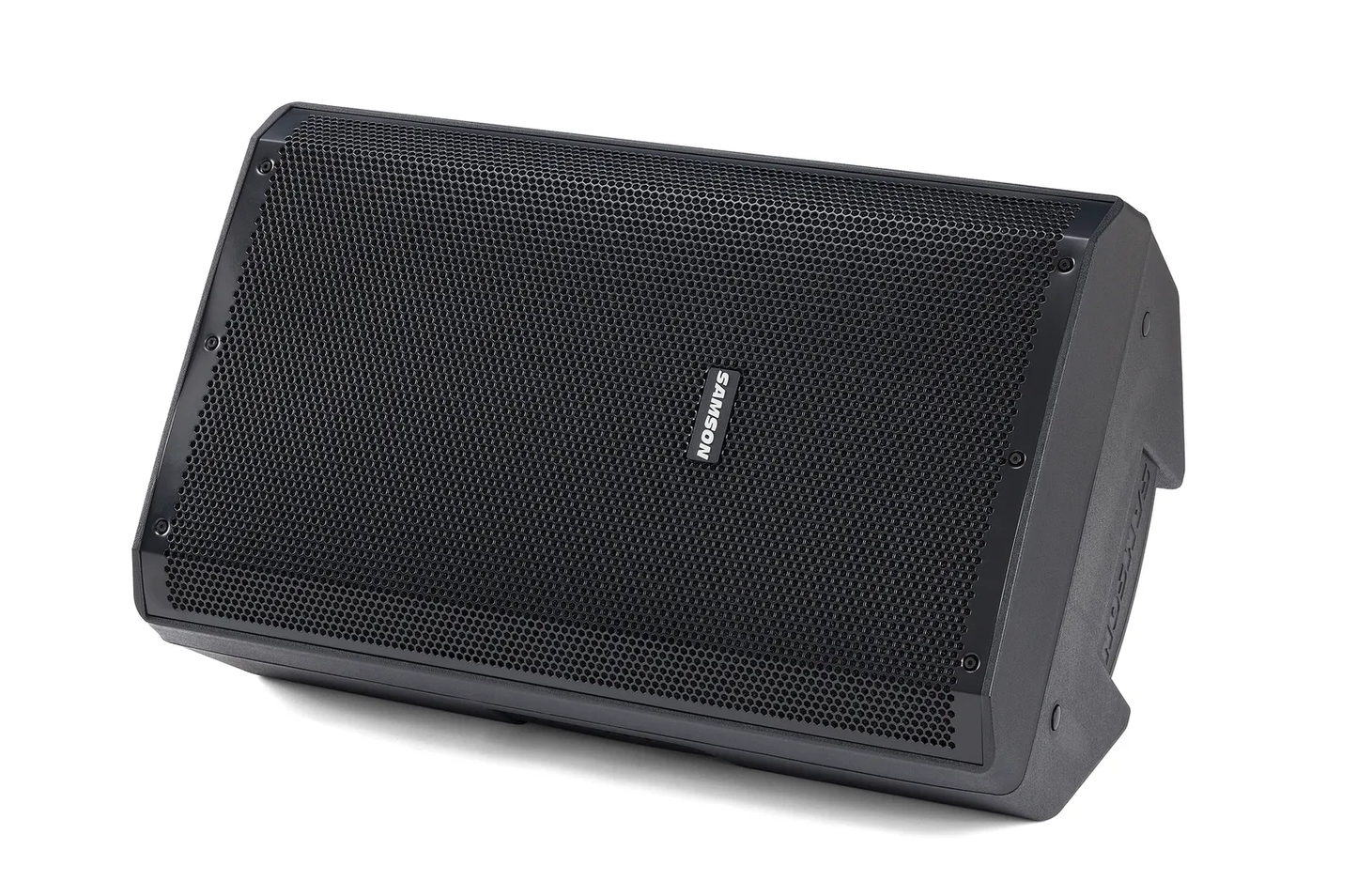

- 2-way active loudspeaker
- 400 watts Peak/200 watts RMS of power
- 15" extended range low frequency driver with 2.5" voice coil
- 1" high frequency driver
- Two selectable Mic/Line XLR-1/4" combo inputs with variable compressor controls
- Bluetooth connectivity to connect wireless music sources
- 1/8" (3.5mm) Aux input for stereo line level devices (MP3 players, keyboards, etc.)
- XPD Wireless port for use with Samson XPD Series USB Digital Wireless Systems (sold separately)
- Independent volume controls on all channels
- XLR Mix output for daisy chaining additional speakers
- Signal/Limit indicator
- Solid polypropylene enclosure with impact resistant design
- Three large ergonomic carry handles
- Integrated 1 3/8" speaker stand mount
- Four M10 fly points
- Horizontal/Angled floor monitor positioning
- Full perforated metal grille protects all speaker components
Specifications
Output Power | 400 Watts Peak /200 Watts RMS |
---|---|
Max. SPL (1M) | 116dB |
Frequency Response | 50Hz – 20kHz |
Low Frequency | 15” (381mm) Woofer, 2.5” (63.5mm) Voice Coil |
High Frequency | 1” (25.4mm), 1” (25.4mm) Voice Coil |
Crossover Frequency | 3kHz |
Crossover Type | 18dB/Oct |
Horn Coverage | 90°H x 60°V |
Inputs | Balanced XLR–1/4” Combo, USB XPD Wireless |
Output | Balanced XLR Line Output |
Contour Equalization | 100Hz & 12kHz Boost |
Electronic Protection | Thermal, Overload, Analog (Optical) Limiter, Compressor |
Enclosure | Polypropylene |
Grille | Full metal perforated |
Handles | Two side, one top |
Monitor Angle | 45° |
Mounting Method | 1-3/8” (35mm) Pole Mount Receptacle, 4 M10 Flypoints |
Dimensions | 15.2” x 14” x 24.9” /386mm x 356mm x 631.5mm |
Weight | 32.6lb / 14.8kg |
