SAMSON Stage 412 Quad-Channel Handheld VHF Wireless System, Frequency Selectable

Name: SAMSON Stage 412 Quad-Channel Handheld VHF Wireless System, Frequency Selectable
Brand: SAMSON
SKU: SWS412HH-E
Price: 299.99 USD
Availability: OutOfStock

SKU:SWS412HH-E

$299.99

~~$299.99~~ $299.99

Sale Unavailable: Contact us for Details

Product variants

Quantity

Stage 412

Quad-Channel Handheld VHF Wireless System, Frequency Selectable

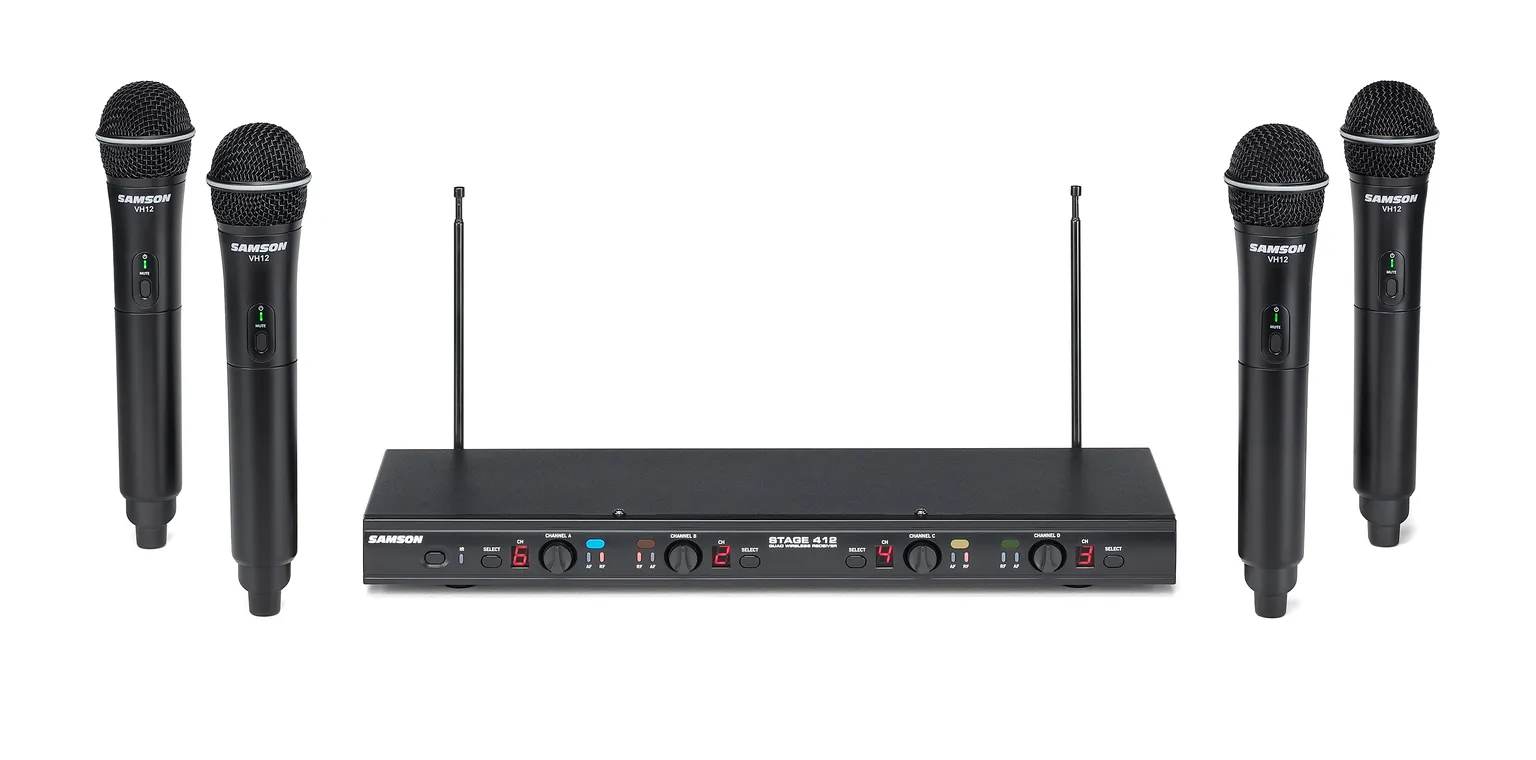

The Stage 412 is a frequency-agile, four-channel wireless microphone system with four dynamic handheld microphones that transmit to a single rugged metal receiver. Each handheld features Samson's Q6 dynamic microphone element, providing crisp, clear sound and reliable VHF wireless performance for presentations, education, worship, karaoke and other applications with up to four performers.

VHF Operation

Samson has been at the forefront of wireless innovation, always striving to make it easier for performers everywhere to cut the cord. The Stage 412 operates on the reliable VHF frequency spectrum, which has become much less crowded with the advent of digital television.

Simple Setup

The Stage 412's frequency-agile design offers four channels with six operating frequencies per channel over a 173MHz-198MHz frequency range. In addition, the system's IR sync feature allows users to wirelessly match each transmitter to the operating frequency of a receiver channel in seconds. A 200' operating range provides ample freedom for any presenter or performing group, while each microphone transmitter offers exceptional battery life of up to 10 hours on two AA batteries (not included).

Versatile Performance

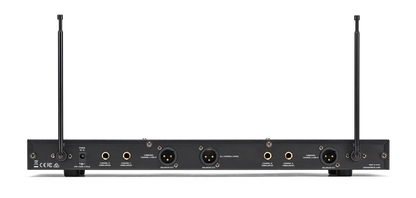

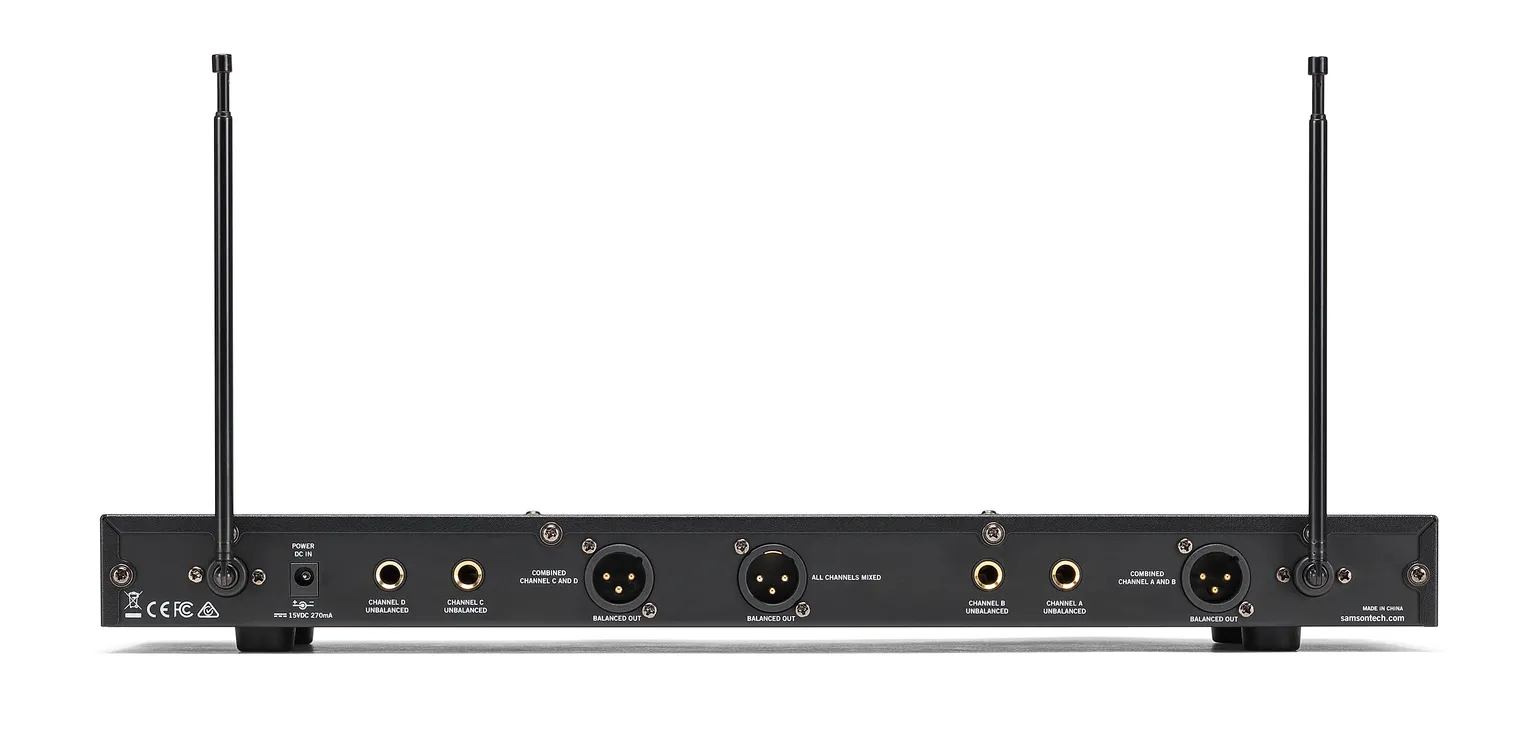

Featuring the rugged metal SR412 receiver, the Stage 412 is designed for maximum durability and versatility. The rear panel features four 1/4" outputs and three balanced XLR outputs for connection to a mixer or powered PA speakers. The 1/4" outputs send each channel separately, while the XLR outputs are dedicated to sending single output mixes of channels A/B, channels C/D, and all four channels. Front panel volume controls on each channel allow you to find the perfect blend for each performer.

Stage 412 Wireless System

Quad-channel VHF (173MHz–198MHz) wireless system
Six operating frequencies per channel
Up to three simultaneous systems (region dependent)
IR sync wirelessly matches receiver and transmitter frequency
200' (60m) operating range (line-of-sight)
AC adapter included

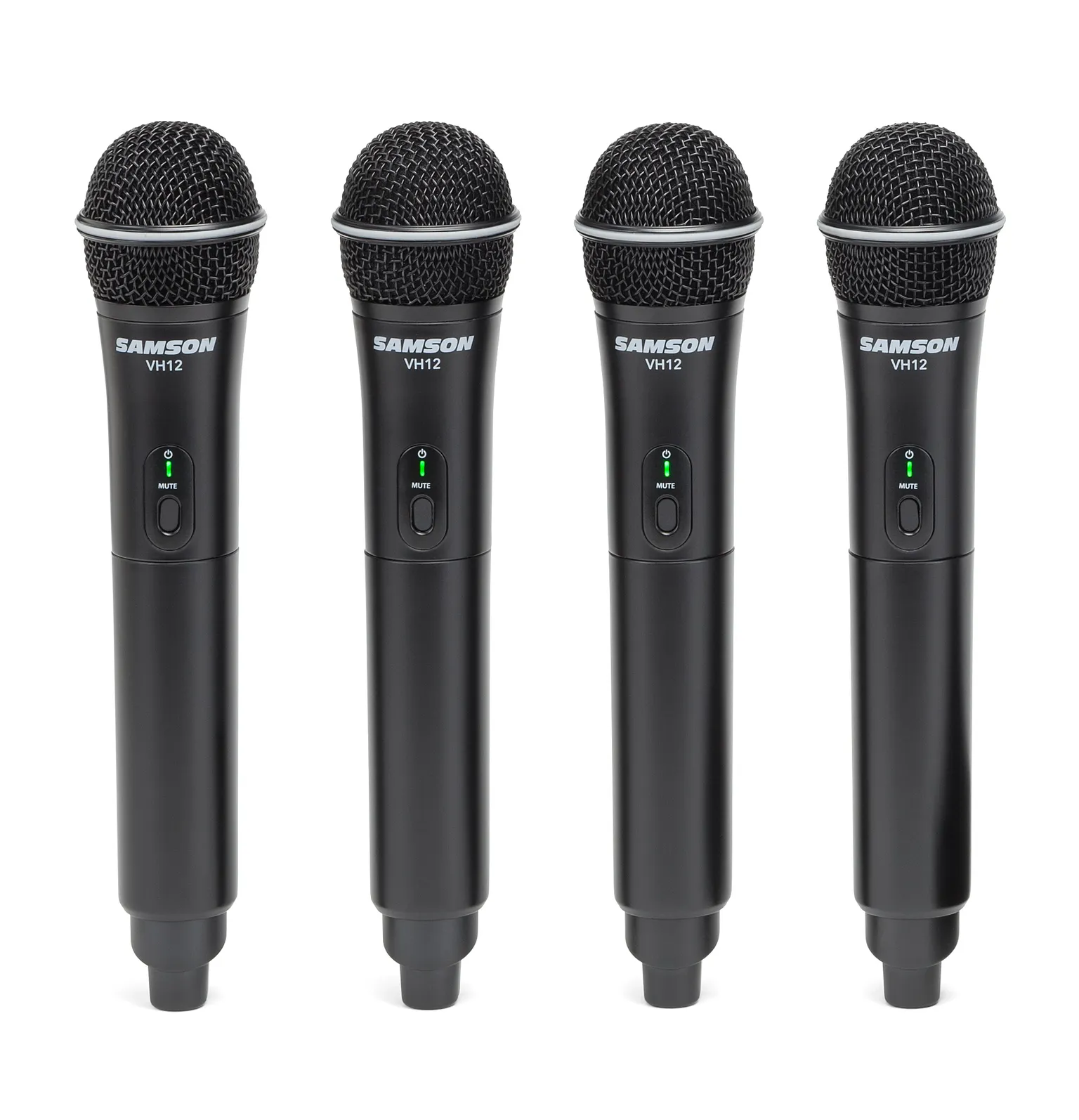

VH12 Handheld Transmitters

Two Q6 Dynamic Microphone capsules
Each offers up to 10 hours of battery life using two AA batteries (not included)

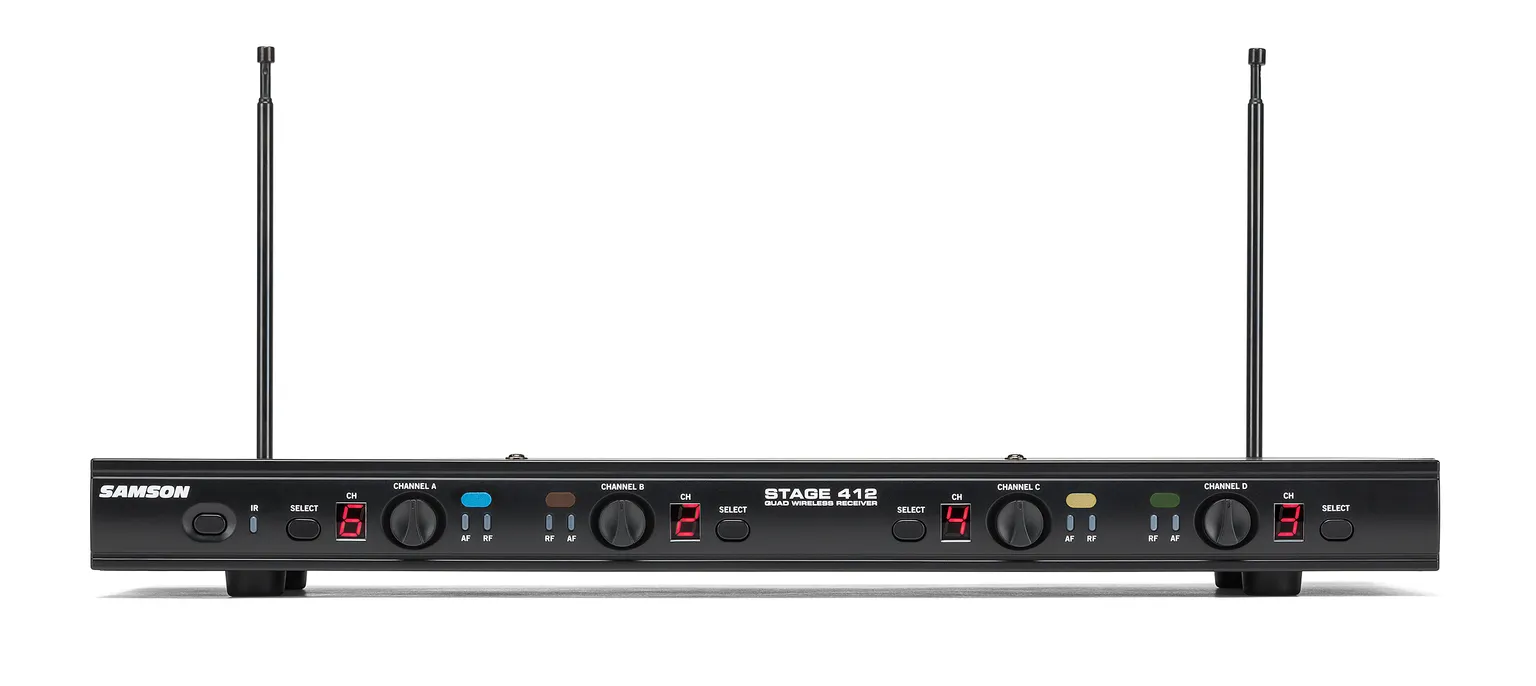

SR412 Wireless Receiver

Rugged metal chassis
Dedicated Volume controls for each channel
Four 1/4" independent channel outputs
Three balanced XLR mixed outputs

Specifications

**System**
Operating Frequency	VHF 173MHz to 198MHz
Number of Frequencies per Channel	6
Frequency Stability	±0.005%
Modulation Mode	FM
Maximum Deviation	±30 kHz
Operating Range	200’ / 60m
Frequency Response	80 Hz to 15kHz
Tone Key Frequency	30.00kHz

**VH212 Transmitter**
RF Power Output	10mW
Microphone Element	Dynamic
Typical Battery Life	10 hours
Current Consumption	120 mA typical
Dimensions	ø2.17" x 10" / ø55mm x 255mm
Net Weight	0.5lb 0.22kg

**SR412 Receiver**
Image Rejection	35 dB
Dynamic Range	100 dB
Maximum Output	1.37 V
Sensitivity	-100 dBm @ 30 dB SINAD
Output Connectors	2x 1/4” (6.3 mm) unbalanced, 3x XLR balanced
Audio Output Levels	-12dB
Dimensions	16.92” x 6.7” x 1.57” / 430mm x 170mm x 40mm
Net Weight	3.08lb / 1.4 kg
