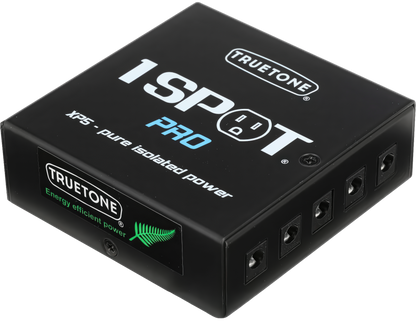

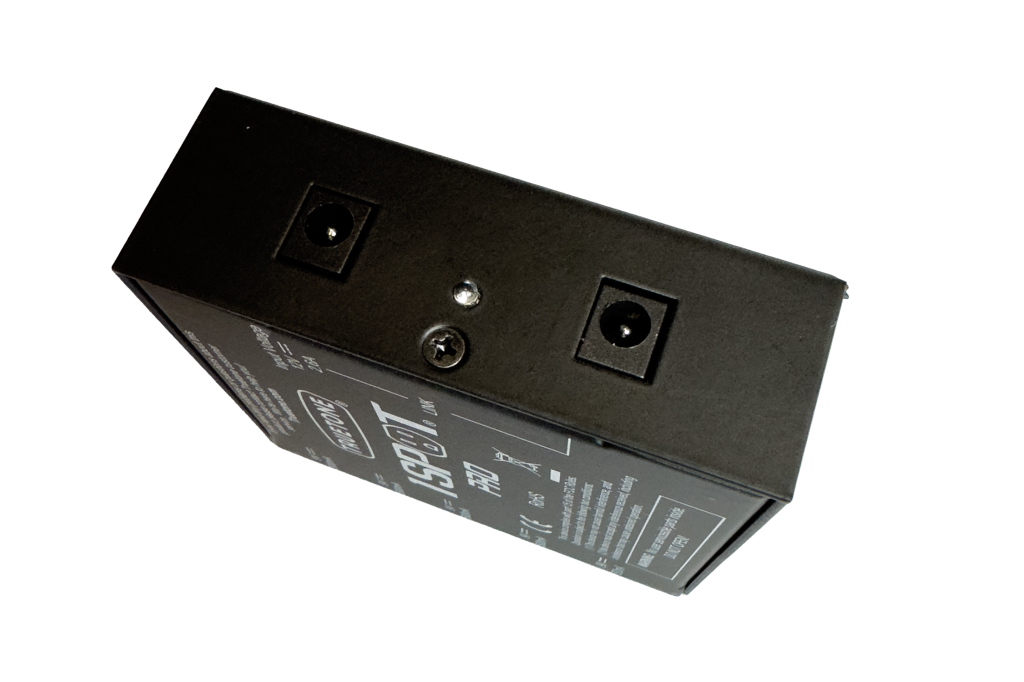

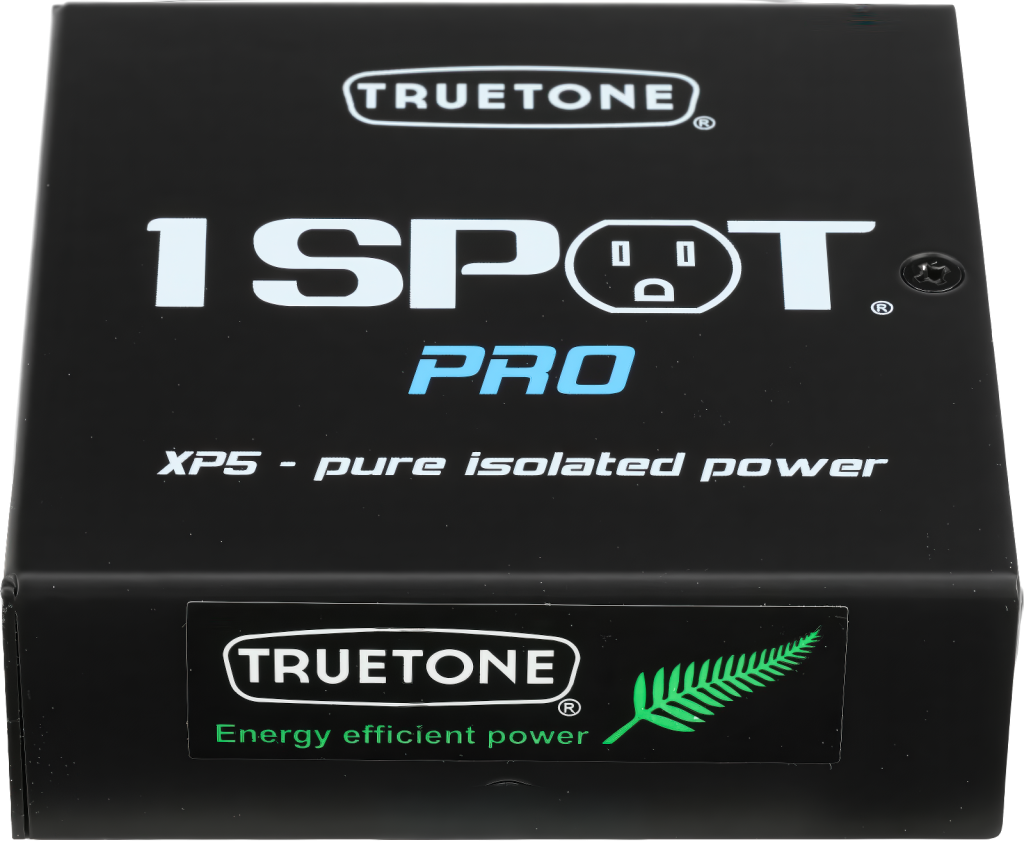

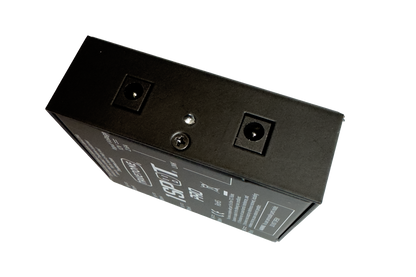

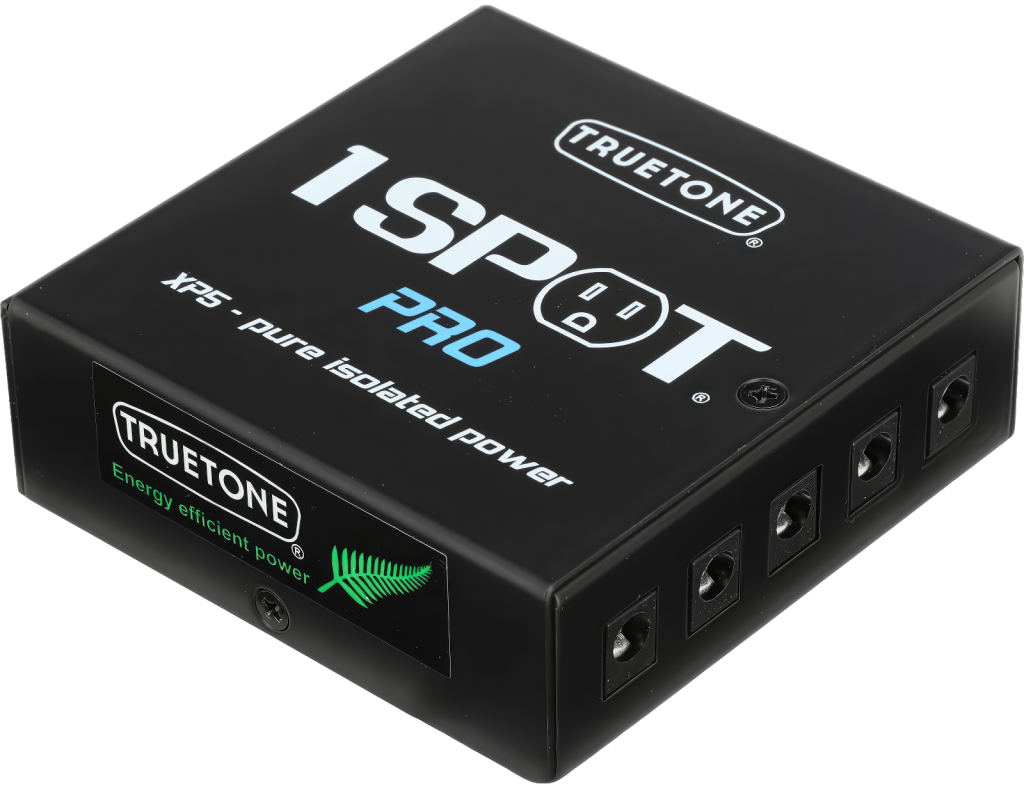

Truetone 1 Spot XP5 5 Pedal Isolated Power Supply Expansion Box

The 1 SPOT Pro Story

“A lot of people over the years had told us that we should make a power brick. Even some of my own staff urged me to do it, but I didn’t want to for two reasons. First, I knew the 1 SPOT could power just about every pedal out there, so I didn’t see the need. Second, I didn’t want to make just another knock-off of someone else’s power brick. If we were going to make one, we were going to do it our way and have features that nobody else could offer. As pedal designs changed and it became more common for digital pedals to require isolation and for others to need something other than 9Vdc, I finally saw a reason for us to design a power brick.”

“It took 3 years and lots of experimentation, but we were finally able to design a 1 SPOT Pro, using our own proprietary technology to give musicians all the features they need for today’s pedalboards. The original 1 SPOT still works great for most musicians, but for those who need more power and versatility, the 1 SPOT Pro fills the need perfectly.” - Bob Weil (Founder & President - Truetone)

1 SPOT Pro Features (All Models)

1 SPOT Technology

1 SPOT Technology… what does that mean and why should I care? Technically, it’s switching power supply technology, which is very different than what anyone has ever put inside a power brick. Normally, you would find just a big transformer and a handful of small electronic components inside a power brick… old tech that hasn’t changed in decades and has a lot of limitations. We took the same triple filtered switching power supply technology found in our famous 1 SPOT and scaled it up to make the 1 SPOT Pro models. With much more space to work with, we were able to completely eliminate noise, provide total electrical isolation between outputs, create multiple voltages, and still give you the ability to use it anywhere in the world.

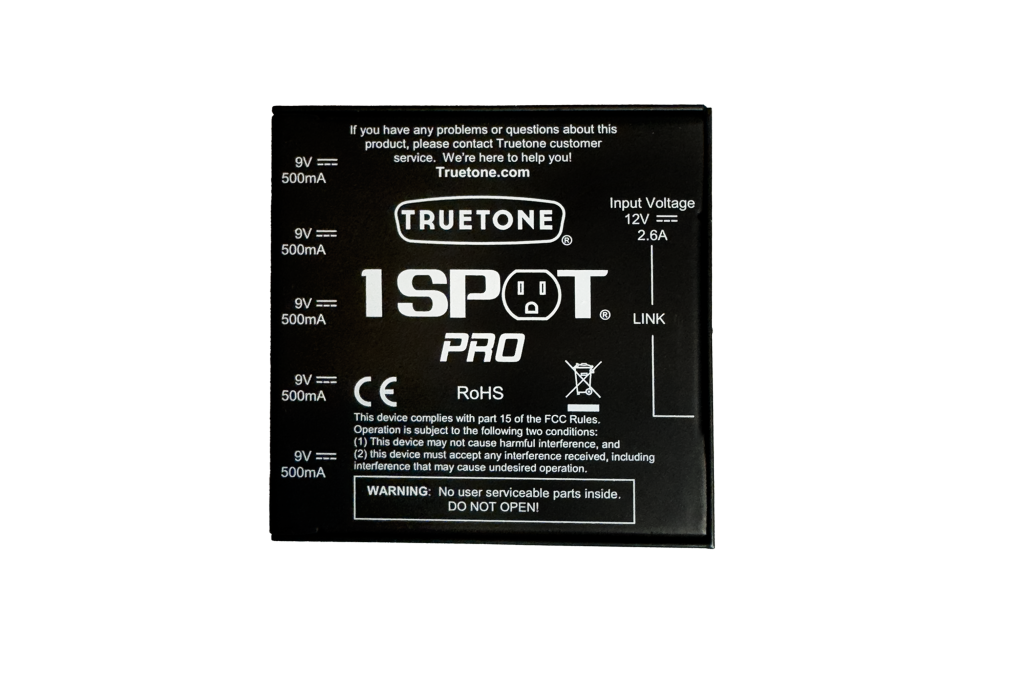

A major benefit of using a switching power supply is that it can handle far more current (power being pulled out of it) than any transformer-based power supply. Although we had to put power rating labels on each output to satisfy certification agencies (yes, we actually certified these, unlike many companies), the outputs can generally handle far more than the label shows. For example, you can connect a 300mA pedal to a 200mA output, without causing any problems. With a transformer-based power supply, you can’t get away with that. The important thing is to not exceed the total of all the labels. With a CS7 (for example), the output labels add up to 1900mA total. That means the total current draw of all your pedals should be less than 1900mA.

Multiple Voltages (CS Series only)

We recognize that not all guitar pedals run off 9V. That’s why all 1 SPOT Pro models have outputs that can put out 9Vdc, 12Vdc or 18Vdc. The CS12 even has a variable voltage output for old-style fuzz pedals, and a 9Vac output for certain Line6 and Digitech pedals. And if you need to change the voltage of an output, Truetone also makes inexpensive converter cables to help you. There’s the Voltage Doubler, which does exactly what its name says, and the 18V to 9V Converter... which also does what its name says. They don’t have the most clever names, but they get the job done!

Worldwide input voltage

Just like with the original 1 SPOT, (and your laptop power supply and phone charger), the 1 SPOT Pro uses switching power supply technology which allows you to use it anywhere in the world.
The 1 SPOT Pro won’t leave you stranded at your first international gig!
